Introduction
In an interactive projection system, point cloud density determines how precisely LiDAR sensors capture and interpret spatial information.
The higher the density, the more detailed and accurate the mapping — but also the greater the demands on processing power, bandwidth, and thermal management.
As a leading manufacturer of POE interactive LiDAR and reception & navigation robots, CPJROBOT continually optimizes these parameters to balance accuracy, responsiveness, and efficiency.
Let’s examine how point cloud density shapes the user experience and what metrics are essential for evaluating LiDAR-based projection systems.
1. Alignment and Positioning Precision
Point cloud density directly affects the accuracy of spatial alignment and calibration between LiDAR sensing and projected imagery.
Key Effects
- More data points enable finer geometric alignment and stronger mathematical fitting.
- High density improves stability across complex or long-distance scenes.
Evaluation Metrics
- Translation and rotation errors (centimeter/degree level) at varying distances.
- Repeatability — variance after multiple calibrations.
- Temporal drift — alignment deviation over time.
Takeaway:
A dense point cloud ensures that projection visuals remain stable and correctly aligned, even when the environment changes or users move through the space.
2. Interaction Response and Latency
Interactive projection relies on real-time detection and feedback.
Point cloud density defines how detailed the LiDAR can perceive gestures, body poses, and movement boundaries.
Metrics to Track
- Detection rate and false/missed detection rates as density varies.
- Tracking stability: loss rate and tracking duration.
- Consistency: identical gestures should produce the same response each time.
Goal:
Maintain low latency while sustaining accurate motion recognition — typically measured in end-to-end delay (T ms) and frame processing time.
3. Projection Quality and Visual Fidelity
High-density LiDAR mapping yields better scene geometry and projection accuracy.
It improves occlusion handling, edge alignment, and the perceived realism of interactive content.
Evaluation Indicators
- Boundary deviation rate relative to density.
- Projection misalignment percentage in complex geometry.
- Subjective clarity and detail scores from user testing.
Result:
Richer point clouds create smoother, more immersive visuals where digital elements blend naturally with physical surroundings.
4. System Performance and Resource Efficiency
While higher point cloud density enhances detail, it also raises demands on processing power, bandwidth, and cooling.
Performance Dimensions
- Per-frame processing time and total end-to-end delay.
- Power consumption: average and peak wattage.
- Thermal curve: temperature rise and cooling efficiency.
- Bandwidth utilization and cache hit rate across densities.
Optimization Insight:

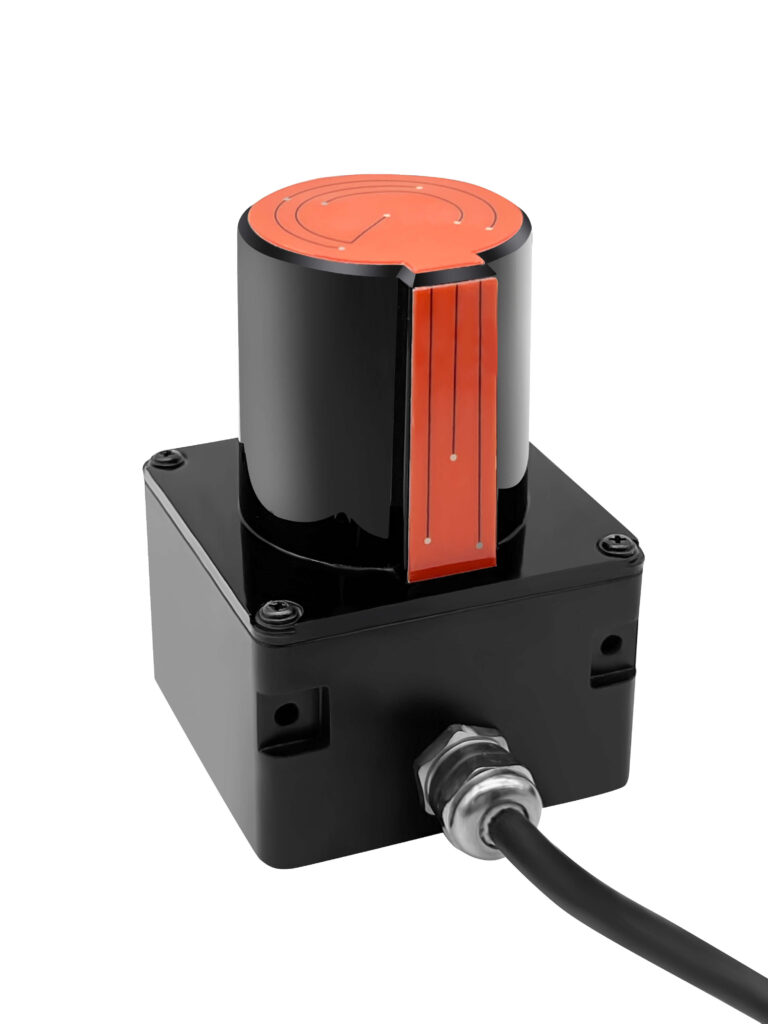

CPJROBOT’s LiDAR-F1 leverages TOF (Time-of-Flight) technology, 30 FPS frame rate, and efficient PoE architecture to sustain high density without overheating or latency spikes.
5. Robustness in Dynamic Scenarios
In dynamic environments with moving people, reflections, or partial occlusions, high-density point clouds improve stability — but may amplify accumulated error if calibration isn’t precise.
Robustness Indicators
- Alignment maintenance rate under occlusion.
- False point / noise interference caused by reflective surfaces.
- Multi-target tracking separation accuracy in motion scenes.
Balanced Design:
A moderate-to-high density optimized through auto-calibration algorithms (built into CPJROBOT LiDAR-F1) yields reliable, real-time interaction without overburdening system resources.
6. Practical Evaluation Framework
To assess LiDAR point cloud performance, CPJROBOT recommends a layered testing framework:
- Static scenes: fixed objects at near, mid, and far ranges; varied materials and reflectivity.
- Dynamic scenes: moving objects, mixed motion speeds.
- Extreme lighting: strong sunlight, backlight, and low-light conditions.
Density Levels for Testing
Define three density tiers — low, medium, high — with consistent point counts for comparison.
Sample Quantitative Indicators
| Metric | Description |
|---|---|
| Alignment error | Translation ≤ a cm, rotation ≤ b ° |
| End-to-end delay | ≤ T ms across sensing → processing → projection |
| Detection accuracy | ≥ P1 %, false rate ≤ F1 % |
| Tracking loss rate | ≤ L % |
| Power variation | Peak ≤ ΔP %, within safe thermal range |
| Visual clarity | Edge misalignment ≤ E % |
Analysis Tools:
Use regression to visualize how density affects latency and accuracy, and apply t-tests or ANOVA to confirm statistical significance between density levels.
7. Application Insights
Different sectors prioritize different outcomes:
- Education / Exhibitions: focus on immersion and alignment stability.
- Industrial or safety systems: prioritize robustness and accuracy under stress.
Higher density isn’t always better — it must balance processing capability, thermal limits, and cost efficiency.
Before increasing density, improve calibration precision and alignment algorithms to prevent amplified error propagation.
Frequently Asked Questions (FAQ)
Q1: What is point cloud density in a LiDAR system?
A: It refers to the number of 3D points captured per unit area. Higher density provides finer detail but requires more computing power and bandwidth.
Q2: How does density affect user interaction?
A: Denser point clouds deliver smoother gesture recognition and more responsive tracking, enhancing the interactive projection experience.
Q3: Does higher density always mean better results?
A: Not necessarily. Beyond a threshold, returns diminish while power, heat, and cost increase. Balance is key.
Q4: How does CPJROBOT manage high-density data efficiently?
A: The POE LiDAR-F1 integrates advanced TOF sensors, 30 FPS detection, and optimized firmware for fast data fusion and stable thermal control.
Conclusion
Point cloud density defines how accurate, stable, and immersive a POE LiDAR interactive projection can be.
The ideal configuration finds balance — delivering detailed alignment and responsive interaction without sacrificing thermal efficiency or real-time performance.
With CPJROBOT POE LiDAR-F1, you gain a sensor designed for precision, reliability, and scalability — perfect for exhibitions, retail spaces, education centers, and smart entertainment venues.
Enhance your interactive projection with CPJROBOT POE LiDAR-F1.
Achieve precision sensing, seamless calibration, and immersive visual performance — all through a single PoE connection.
