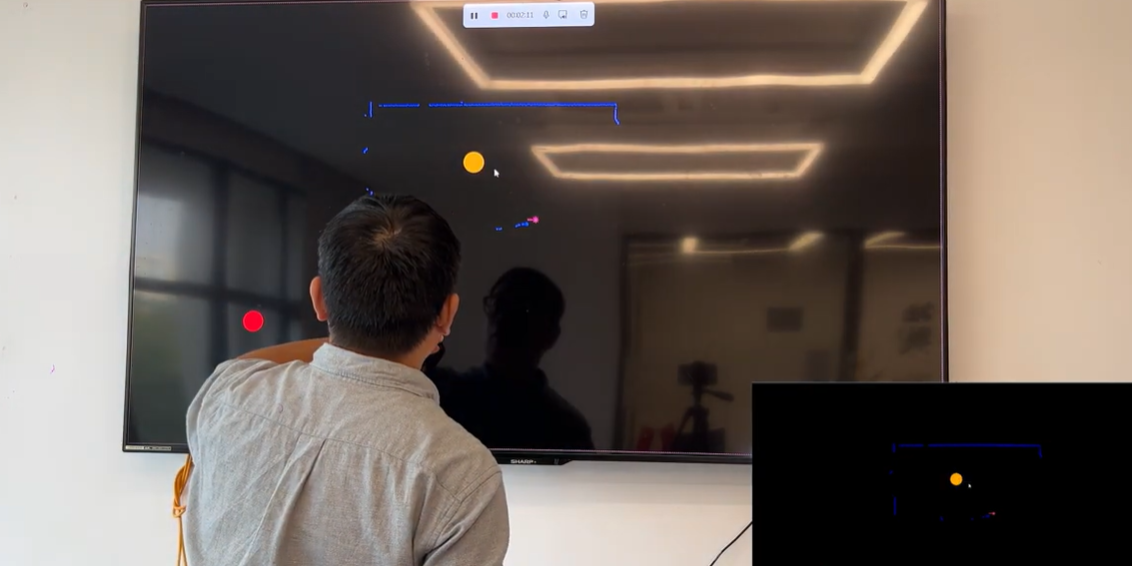

Interactive projection projects often fail for a surprisingly simple reason:
The LiDAR powers on.
The indicator light flashes.
But the software still says:
“Connection Failed.”
For many installers, this becomes the most frustrating part of deploying an interactive floor or wall system.
They restart the software.
Replace the radar.
Reboot the PC.
Reset the switch.
But in real-world projects, most PoE LiDAR connection problems are not caused by hardware failure.
They usually come down to three hidden issues:
- Incorrect PoE voltage
- Incomplete network cable wiring
- Firewall or IP conflicts
At CPJROBOT, we’ve supported many interactive projection projects worldwide, and these three issues account for the majority of “connected but no data” cases.
This guide explains how to troubleshoot PoE LiDAR systems properly — before wasting hours replacing perfectly good hardware.
Why PoE LiDAR Systems Are Sensitive to Network Environments
Unlike traditional USB sensors, PoE LiDAR systems rely on:
- Power over Ethernet
- TCP/IP communication
- Stable packet transmission
- Real-time data streaming
This means:
the LiDAR may appear powered on while data transmission is actually failing in the background.
Especially in immersive interactive installations such as:
- Interactive floors
- Interactive walls
- Projection mapping
- Digital museums
- Educational installations
- Commercial exhibitions
stable network communication is critical.
For this article, we’ll use the CPJROBOT POELIDAR-M1 as a reference model — a lightweight 125.5g PoE LiDAR designed for interactive applications.
Part 1: The 3 Most Common Causes of “Connection Failed”
1. The Voltage Problem:
48V PoE Is NOT Optional
One of the most common mistakes is using old passive PoE switches.
Many installers assume:
“PoE is PoE.”
It isn’t.
The POELIDAR-M1 requires:
IEEE 802.3af standard PoE.
Recommended output voltage:
48V–53V.
If the switch only provides:
- 24V passive PoE
- unstable voltage
- overloaded power budget
the LiDAR may:
- reboot repeatedly
- lose packets
- disconnect randomly
- fail to initialize properly
Professional Tip:
Even if voltage looks correct, always check the total switch power budget.
Too many connected devices may reduce per-port power stability.
This is especially common in:
- multi-radar installations
- projection mapping projects
- immersive exhibition systems
2. The “8-Core Cable” Mistake
This issue is extremely underestimated.
Many cheap Ethernet cables only use:
4 cores for data transmission.
But PoE LiDAR requires:
all 8 cores working correctly.
Otherwise:
- power may still pass through
- LEDs may still blink
- but TCP/IP communication becomes unstable
This creates the classic symptom:
“Device powers on, but software cannot connect.”
How to Check Properly
Use a professional network cable tester.
All 8 pins must light correctly.
Hand-crimped cables are especially risky in:
- exhibition projects
- temporary installations
- outdoor events
At CPJROBOT, we strongly recommend industrial-grade CAT5e or CAT6 cables for stable interactive system deployment.
3. Firewall & IP Address Conflicts
Another common issue:
the LiDAR is actually working,
but Windows blocks communication silently.
Typical software conflicts include:
- Windows Defender Firewall
- Huorong Security
- 360 Security
- antivirus network protection
These programs may block:
- UDP packets
- TCP communication
- unknown device discovery
Quick Troubleshooting Steps
Disable Firewall Temporarily
During first installation, disable firewalls completely.
Ping Test
Try:
ping 192.168.0.7
If there is no response:
the issue is usually:
- IP conflict
- incorrect network segment
- firewall blocking
Use Static IP
Example:
- LiDAR: 192.168.0.7
- PC: 192.168.0.100
Ensure no other device is using the same address.
Part 2: Correct Installation Process for PoE LiDAR
Step 1: Space Planning Before Installation
Before drilling anything:
measure the interactive area carefully.
The POELIDAR-M1 supports:
4m+ detection radius.
But many installers forget:
corners are usually the furthest points in rectangular rooms.
Always verify:
- edge coverage
- corner tracking stability
- signal dead zones
before final mounting.
Step 2: Avoid “Ghost Triggers”
Interactive systems are highly sensitive to reflections.
Common interference sources:
- glass walls
- polished metal
- glossy floors
- mirrors
- reflective decorations
These surfaces may generate:
false touch points
or unstable tracking.
Another Critical Detail:
The circular LiDAR head should remain higher than the interaction surface.
Otherwise:
blind spots may appear near the radar.
Step 3: Use Soft Mounting First
Never fully tighten the screws immediately.
Recommended workflow:
Connect:
- PC
- PoE switch
- POELIDAR-M1
Open Calibration Software
Check raw signal quality first.
Perform Micro-Adjustments
Tilt and rotate the LiDAR slowly until:
- the full interactive area is visible
- interference zones disappear
- tracking becomes stable
Only then:
tighten the M3 mounting screws.
This small step often saves hours of recalibration later.
Part 3: Troubleshooting Common “Ghost Problems”
Ghost Touches
Symptoms:
- random trigger points
- phantom interaction
- unstable movement detection
Common Causes:
- sunlight reflections
- glossy surfaces
- dirty sensor cover
Solutions:
- clean sensor surface
- block reflection sources
- mask interference zones in software
Large Tracking Offset
Symptoms:
projection and interaction do not align.
Common Cause:
non-uniform projection scaling.
If offset exceeds:
10cm+
check:
- projection geometry
- resolution consistency
- calibration points
Random Connection Drops
Common Causes:
- overheating
- unstable PoE voltage
- overloaded switch
Recommended operating temperature:
0°C–40°C.
Always verify stable switch output during long-term operation.
Why PoE LiDAR Is Becoming Popular in Interactive Installations
Compared with traditional USB sensors,
PoE LiDAR offers major advantages:
✔ Single-cable deployment
✔ Longer transmission distance
✔ Cleaner installation
✔ Easier maintenance
✔ Better scalability
✔ More stable multi-device deployment
This is why PoE LiDAR is increasingly used in:
- museums
- digital art exhibitions
- immersive spaces
- interactive education
- smart retail
- projection mapping systems
FAQ
Why does the LiDAR light turn on but software still shows disconnected?
Usually because:
- incorrect PoE voltage
- incomplete 8-core cable
- firewall blocking
- IP conflict
Power and data are separate issues.
Does PoE LiDAR require all 8 Ethernet cable cores?
Yes.
PoE and stable TCP/IP communication require all 8 cores functioning correctly.
What PoE standard does POELIDAR-M1 support?
IEEE 802.3af standard PoE.
Recommended voltage:
48V–53V.
Why do interactive walls generate ghost touch points?
Most commonly due to:
- reflections
- sunlight
- glossy materials
- incorrect LiDAR angle
Can multiple PoE LiDARs work together?
Yes.
CPJROBOT supports multi-radar cascading for:
- curved walls
- large floors
- panoramic interactive systems
Final Thoughts
Most “Connection Failed” issues are not hardware failures.
They are installation environment problems.
Understanding:
- PoE voltage
- Ethernet wiring
- network communication
- calibration workflow
is far more important than repeatedly rebooting the system.
At CPJROBOT, we design PoE LiDAR systems specifically for real-world interactive deployment — not laboratory-only environments.
That’s why products like the POELIDAR-M1 focus on:
- easy installation
- lightweight structure
- stable tracking
- one-cable deployment
- interactive integration flexibility
